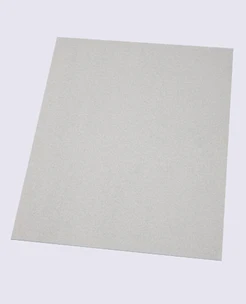

3M™ Thermally Conductive Acrylic Interface Pad 5590H
Thermally Conductive Acrylic Interface Pad | 5590H
3M™ Thermally Conductive Acrylic Interface Pad 5590H is a conformable, slightly tacky acrylic elastomer thermal interface material containing a conductive ceramic filler. It is designed to provide a preferential heat transfer path between heat-generating components and cooling devices such as aluminum plates and heat sinks.
Key Features
- Thermal conductivity of approximately 2.08 W/m-K for efficient heat transfer.
- Conformable acrylic elastomer helps fill gaps and accommodate non-flat surfaces.
- Good electrical insulation properties for electronic thermal management.
- UL94 V-0 listed for flame-retardant performance.
- Soft, compliant construction allows pressure relaxation and helps reduce high pressure zones on components.
- Thin acrylic layer supports easy handling, pre-assembly and die-cutting.
Product Highlights
2.08 W/m-K Thermal Conductivity
Provides an efficient thermal transfer path between heat-generating electronic components and cooling structures.
Excellent Conformability
The conformable acrylic elastomer helps fill interface gaps and accommodate non-flat mating surfaces.
Electrical Insulation
Provides good electrical insulation properties for electronic and power thermal management applications.
UL94 V-0 Listed
UL94 V-0 flame-retardant performance makes the material suitable for demanding electronic applications.
Non-Silicone Construction
Does not contain intentionally added silicone, helping avoid siloxane VOC and oil bleeding associated with silicone products.
Easy Die-Cutting
The layered acrylic construction supports handling during pre-assembly and custom die-cut converting.
Specifications
| Product Name | 3M™ Thermally Conductive Acrylic Interface Pad 5590H |
|---|---|
| Product Number | 5590H |
| Manufacturer | 3M |
| Product Type | Thermally Conductive Acrylic Interface Pad |
| Material | Thermally Conductive Acrylic Elastomer |
| Filler Type | Conductive Ceramic Filler |
| Color | Light Gray Adhesive and Core / White Liner |
| Available Thickness | 0.5 mm, 1.0 mm, 1.2 mm, 1.5 mm and 2.0 mm |
| Thermal Conductivity | 2.08 W/m-K Typical |
| Thermal Conductivity Minimum | 1.65 W/m-K |
| Flammability | UL94 V-0 |
| Density | Approximately 2.14 g/cm³ |
| Hardness | Approximately 70 Shore 00 |
| Volume Resistivity | 5.5 × 1011 Ω-cm |
| Volume Resistivity Minimum | 1.0 × 1010 Ω-cm |
| Breakdown Voltage | 19.1 kV at 1.0 mm thickness |
| Breakdown Voltage Minimum | 16.0 kV |
| Construction | Thermally Conductive Acrylic Elastomer with Conductive Ceramic Filler |
| Surface Character | Slightly Tacky |
| Electrical Property | Good Electrical Insulation |
| Silicone | No Intentionally Added Silicone |
| Conformability | Suitable for Non-Flat Surfaces |
| Die-Cutting | Suitable for Pre-Assembly and Custom Converting |
| Typical Applications | Battery Cooling, Power Electronics and HMI Displays |
Technical values are typical/representative and should not be used as specification limits. Product performance may vary depending on application, substrate, compression, processing conditions and environmental factors. Always refer to the latest 3M technical documentation for application-specific requirements.
Resources
Technical Data Sheet
View or download the technical data sheet for 3M™ Thermally Conductive Acrylic Interface Pad 5590H including thermal, electrical and physical performance information.
View TDSApplications
Battery Cooling
Suitable for thermal interface applications between battery components and cooling structures in battery systems.
Power Electronics
Suitable for power electronics assemblies, power modules and heat-generating electronic components requiring thermal management.
HMI Displays
Suitable for HMI displays and electronic assemblies requiring conformable thermal interface materials.
Product Uses
3M™ Thermally Conductive Acrylic Interface Pad 5590H is designed to provide a preferential heat transfer path from heat-generating components to cooling devices such as aluminum plates and heat sinks.
The conformable acrylic elastomer construction helps fill gaps between mating surfaces and accommodates non-flat substrates, helping maintain an effective thermal interface.
The slightly tacky construction supports handling during assembly, while the soft and compliant material allows pressure relaxation and helps reduce high pressure zones on electronic components.
3M™ 5590H is suitable for applications including battery cooling, power electronics and HMI displays. The material can also be converted into custom thermal interface components for specific electronic assemblies.
The product incorporates a thin acrylic layer that supports easy handling during pre-assembly and die-cutting, making it suitable for custom converting and high-volume production requirements.
